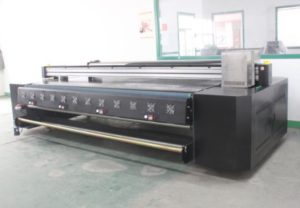

The flat screen printing machine
Overview:
The flat screen printing machine transports the towel by the rubber conveyor belt (referred to as the guide belt). The multiple flat nets are overprinted on the towel with different colors. The accuracy of the printing and color registration directly affects the beauty and quality level of the finished towel, so it is required to drag The system is positioned accurately; in order to improve production efficiency and reduce costs, it is necessary to maintain a certain printing speed. If the speed is too fast, the inertia is too large, the guide belt is difficult to stop, and the positioning color is inevitably inaccurate. This is an unavoidable contradiction.
Working principle:
Firstly, the white towel blank is pasted with the milky white glue at the predetermined position of the guide tape, and then the inverter is driven to drive the three-phase cage type AC asynchronous motor. After the motor is decelerated by the worm gear reducer, the guide belt is dragged, and the towel on the guide belt is aligned with the printing. After the position of the flat net is stabilized, the flat net frame is pressed down to close the towel, and the thin round magnetic steel rod placed in the net frame is driven to reciprocate under the driving of the magnetic field controller under the conveyor belt to pass the pigment placed in the flat net. The hollow pattern is printed on the towel. The pattern of the first color is printed, the frame is lifted, the guide belt sends the towel to the next frame position to stop, and the second color pattern is printed……… until multiple colors (generally 8~10) Color) After the registration is finished, a colored towel will be completed, and the second towel will be printed next to the first towel without gaps. After each towel is dyed and dyed, it is then sent to the tunnel steam oven for drying, then quilting, finishing, quality inspection and packaging until the factory is shipped.
Dyeing machine
Made of all stainless steel, the mechanical speed control has the advantages of no noise, convenient speed regulation, etc. It is suitable for seamless underwear, stockings, and silk of hemp, cotton, rayon and blended. The dying leaves are stirred in the forward and reverse directions to make the dyes in a floating state, uniform dyeing, strong penetrating power, and not easy to damage the dyes.
Use range:
The dyeing machine is used for dyeing, bleaching, scouring and washing of garments such as sweaters, acrylics, and cotton sweaters. It can also be used for dyeing and dying of finished products such as gloves, socks, and towels. It is a wide-ranging product. The ideal bleaching and dyeing equipment. The machine automatically sets the positive and negative cycle to agitate the fabric. The small garment dyeing machine can dye three color samples at a time.
Kind:
Garment dyeing machine
It is suitable for the finishing treatment of knitted fabrics such as seamless underwear, sweater, acrylic shirt, nylon socks, scarves, gloves, cashmere, and blends. It is stable, safe, reliable, noise-free and durable.
High temperature and high-pressure dyeing machine
It is used for the dyeing of fabrics or yarns and has the characteristics of uniform dyeing and not easy to dye flowers.

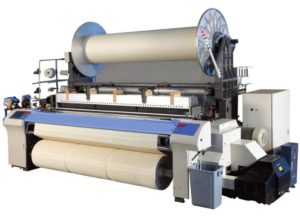

Towel loom
A towel loom is a loom that weaves a towel fabric. The ground warp yarns and the raised warp yarns are respectively sent by two weaving shafts, and a group of weft yarns is pushed to the weaving mouth by the specific regular motion of the weaving so that the raised warp yarns form loops on the surface of the fabric and are woven into a towel fabric.
The towel loom has a working width ranging from 105 to 230 cm. For example, multi-arm, jacquard, and multi-hook boxes can be used to weave a variety of towel fabrics. The weaving and beating mechanism of the towel loom is different from that of the ordinary loom. The amount of warp conveyance of the warp knitting mechanism can be adjusted according to the height required for the loop. The amount of the warp conveyance of the ground warp shaft feeding mechanism is kept constant. Under normal circumstances, the warp yarn tension is larger than the warp yarn, and the raised warp yarn is discharged longer than the ground warp yarn. The cockroaches in the beating mechanism are generally mounted on the movable sley to complete the regular movement of the terry. When weaving the three-weft towel, the first and second wefts have a smaller beating stroke, and the wefting stroke of the weir to the third weft becomes larger, and the first, second, and third weft yarns are pushed together to the weave. The mouth and the weft yarn are caught by the raised warp yarns along the warp yarns with large tension so that the raised warp yarns sent by the wool warp knitting shaft form loops on the surface of the fabric. When the towel fabric is woven on the projectile loom, it is not necessary to change the stroke of the crucible, and a device for moving the weaving mouth is used, and the weaving mouth is reciprocated back and forth according to a specific law during the beating to form a towel fabric.
